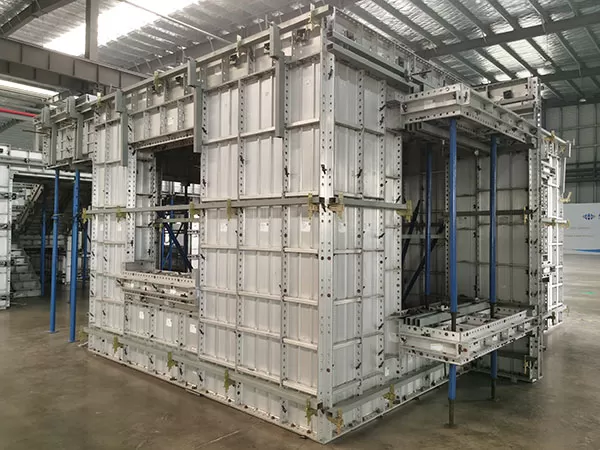

Concrete Formwork Aluminium Formwork Wall Slab Column Formwork System

Aluminium formwork is mainly used to solve the formwork construction of the cast-in-place main structure of housing construction. It can shorten the construction period and finished concrete structure does not need plastering. Construction with CIEZN aluminium formwork, the construction speed can reach 4 days per floor.

4 Parts of CIEZN Aluminium Formwork

	Panel System Standard and irregular panels are used to guarantee the production of solid structured concrete.
	Supporting System   Support system includes various types of posts/props catering to all kinds of roofs, beams, and cantilevered structures, to ensure panels on position solidly.

	Connection System Wedge and pins are used to ensure total integrity in interlocking panels. Flat ties are used to ensure wall thickness
	Reinforcement System Square or rectangular hollow reinforcement waler to prevent over-loading and to guarantee dimensional accuracy.

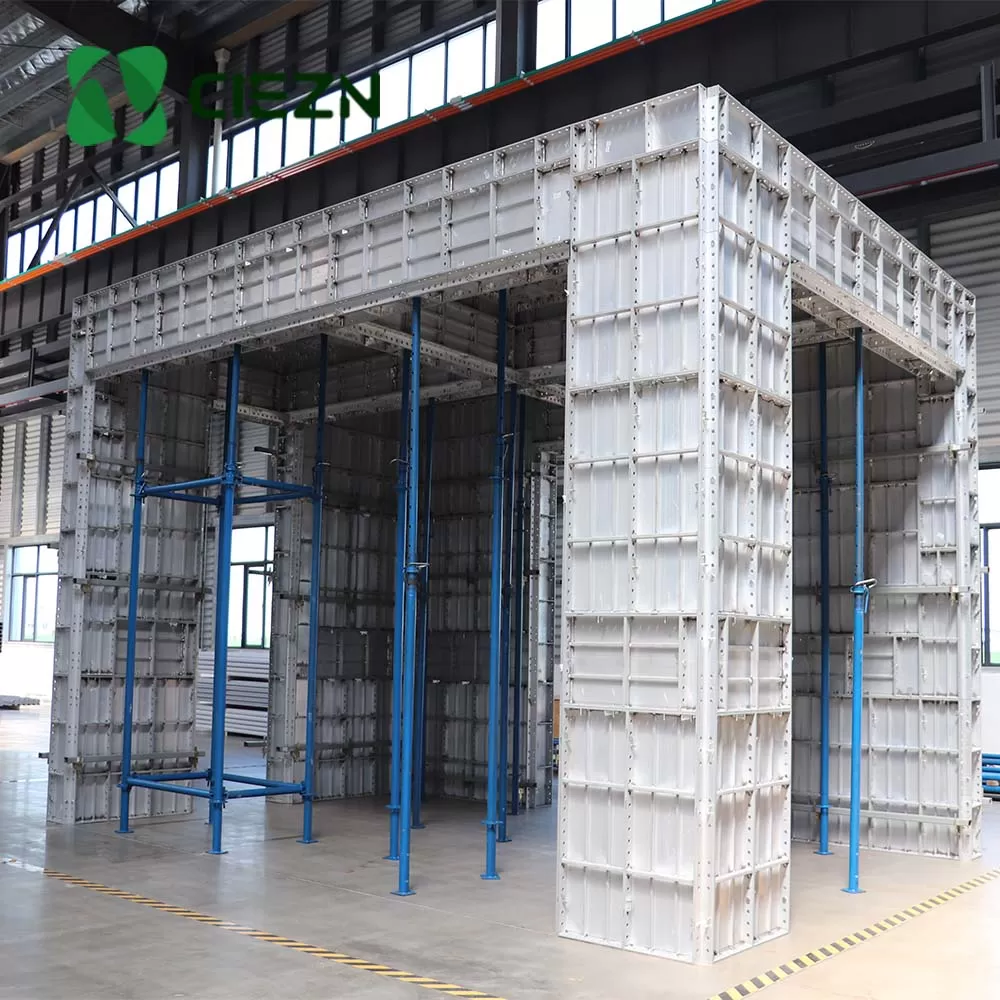

Aluminium Formwork Structure Solutions

Using CIEZN aluminum formwork, all structural building components can be cast in concrete in a single operation that dramatically reduces construction times and results in an extremely strong and high quality concrete structure.

The formwork is custom designed and made-to-measure for each project and is able to monolithically form all components at the same time including

1. Walls
2. Decking / slabs
3. Columns and Beams
4. Stairs
5. Balconies
6. Door and window openings are also incorporated

Aluminium Formwork Application Area

Aluminium formwork application space is constantly increasing: such as small high-rise, medium and low-rise, basements, public buildings, complex structures, road auxiliary structures, pipe gallery projects, etc.

Wall Effect After Dismantling Aluminum Formwork

Construction with CIEZN aluminium formwork achieves with a high quality finish, finished concrete structure does not need plastering.

Aluminium Formwork Advantages

Cost Comparison between Aluminum Formwork and Timber Formwork

Unit: RMB/m²

Remarks:

Aluminum Formworks amotization: Divided by 300 after deducting the recycle value

Timber Formworks amotization: Divided by 10

The total price difference is about 4.5 USD/m²
